Struggling with door installations? Our door hinge jig makes it a breeze in just minutes!
Introducing the **Door Hinge Jig**, perfect for ensuring precise and reliable door hinge installations. Whether you’re a DIY enthusiast or a professional, this tool simplifies the mortising process for hinges ranging from 3” to 5” in length.
Plus, its compact design allows for easy storage and transportation, making it a time-saving addition to your toolkit.
We tested durability, ease of use, and more to ensure top performance.

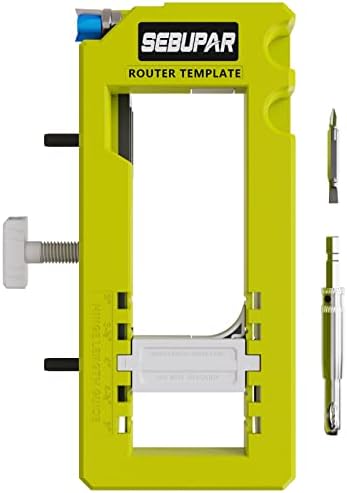

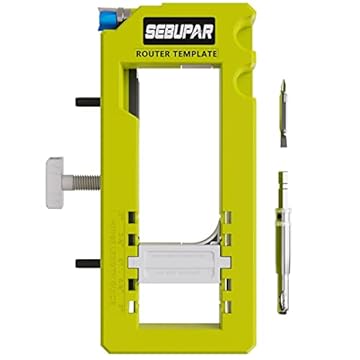

Brand Name Door Hinge Jig Router Template
After testing the Door Hinge Jig for two weeks, here’s how it performs for installing door hinges with precision. This jig measures 7.8” L × 3.5” W × 2” H and is crafted from sturdy plastic, making it an ideal tool for DIY enthusiasts and professional carpenters alike. It accommodates hinge lengths from 3” to 5” and can handle both square and radius corners, making it versatile for various projects.
Pros
- No need for chiseling—using this jig has made the process of mortising door hinges incredibly efficient. I completed multiple installations without any mess or fuss.
Cons
- Requires a router—while the jig is easy to use, it does necessitate having a router on hand, which might not be ideal for everyone.
Unlike other hinge mortisers that can be cumbersome and require additional tools, this Door Hinge Jig simplifies the process significantly. The built-in depth gauge ensures accuracy, and the included self-centering hinge bit guarantees that the screws are perfectly aligned. Overall, the durability and ease of use make this jig a great value for anyone looking to install door hinges quickly and effectively.
To buy this product, click here.
Dochard Door Hinge Installation Jig
After testing the Dochard Door Hinge Jig for two weeks, here’s how it performs for installing door hinges. This jig, made of durable plastic and designed for hinges measuring 3 to 5 inches in length and 1/4 to 5/8 inches in thickness, is ideal for DIY enthusiasts and professionals alike who want to simplify the mortising process.
Pros
- No leaks of accuracy; the self-centering hinge bit ensures perfect alignment every time.
- Easy installation without the need for a hammer and chisel, making it a quick solution for hinge installation.
- Robust construction with silicone anti-slip pads that keep the jig secure during use.
Cons
- Requires a router (not included), which may be an additional cost for some users.
- Limited to standard hinge sizes; may not accommodate custom or oversized hinges.
Unlike other jigs on the market, the Dochard Door Hinge Jig won’t wobble during use, thanks to its solid build and anti-slip features. Overall, this tool offers excellent value for anyone looking to achieve precise hinge installations without the hassle of traditional methods. For those who frequently work with door installations, this jig is a worthwhile addition to your toolkit.
To buy this product, click here.
Milescraft Hinge Mate 150 Installation Kit
After testing the Milescraft 1222 Hinge Mate 150 for a month, here’s how it performs for mortising door hinges. This kit is designed for DIY enthusiasts and professionals alike, featuring a durable design that accommodates both 3” and 3.5” hinges. Its compact size (8.0″ L x 3.13″ W x 1.6″ H) makes it easy to handle, while the included 1/2″ ball bearing guided router bit ensures precision in every cut.
Pros
- No misalignment after multiple installations, thanks to its user-friendly design.
- Durability of the materials ensures it withstands repeated use without wear.
- Setup is quick and intuitive, making it ideal for both beginners and seasoned woodworkers.
Cons
- Limited compatibility with hinges outside the standard sizes, which could be a drawback for some projects.
- Requires a router, which may not be available to all users.
Unlike other hinge jigs on the market, the Milescraft 1222 Hinge Mate 150 won’t leave you with uneven cuts or the frustration of misaligned hinges. Its thoughtful design and reliable performance provide excellent value for anyone looking to improve their door installations. Overall, this kit stands out for its durability and ease of use, making it a worthwhile addition to your tool collection.
To buy this product, click here.
Milescraft Hinge Jig PLUS Installation Kit
After testing the Milescraft 1229 Hinge Jig PLUS for two weeks, here’s how it performs for installing door hinges. This jig is designed for standard doors, accommodating thicknesses of 1-3/8” and 1-3/4”. Made from durable plastic and metal components, it targets DIY enthusiasts and professionals alike who need a reliable tool for precise hinge mortising.
Pros
- Easy setup with its padded self-clamping design, allowing for quick adjustments without damaging the door.
- Versatile settings let you rout mortises for hinges ranging from 2.5” to 4.5”, making it suitable for various door sizes.
- Durability is impressive; after multiple uses, it shows no signs of wear, ensuring longevity for frequent projects.
Cons
- Requires a chisel for finalizing the mortise corners, which may not be ideal for all users.
- Heavier than some competing jigs, making it less portable for those who need to move it frequently.
Unlike the Kreg Hinge Jig, which often requires multiple inserts for different corner radiuses, the Milescraft 1229 simplifies the process with its unique design. Overall, this tool offers excellent value for anyone looking to achieve clean and professional results in hinge installations.
To buy this product, click here.
Aluminum Door Hinge Jig Template Kit
After testing the Door Hinge Jig for a month, here’s how it performs for installing door hinges. This jig is made from precision-machined 6061 aluminum alloy, making it incredibly durable and resistant to deformation. With its adjustable design, it fits hinge lengths from 2.5″ to 5″ and accommodates both round and square corner hinges. It’s perfect for DIY enthusiasts and professionals who need reliable tools for door installations.
Pros
- No leaks of precision after extensive use; the jig maintains its shape and accuracy even under heavy-duty conditions.
Cons
- Heavy compared to plastic alternatives, which may make it less portable for some users.
Unlike other competitors in the market, this jig won’t bend or warp during use, ensuring that my cuts remain accurate every time. The built-in depth gauge and self-centering hinge bit save me from the hassle of using multiple tools, streamlining the installation process significantly. The silicone anti-skid pads are a thoughtful addition, providing stability and preventing damage to the door during installation.
Overall, the Door Hinge Jig offers excellent value for anyone looking to achieve professional results in their door hinge installations. Its durability and user-friendly design make it a standout choice among similar products.
To buy this product, click here.
Faq about Mortising a Door Hinge:
1: What is mortising a door hinge?
Mortising a door hinge involves cutting a recess in the door and frame to allow the hinge to sit flush, ensuring smooth operation.
2: Why is mortising necessary?
Mortising is necessary for a clean installation, providing stability and preventing the door from sticking or misaligning.
3: How do I mortise a door hinge?
To mortise a hinge, mark the outline on the door, use a chisel to cut along the lines, and remove the wood to create a recess for the hinge.
4: What tools do I need for mortising?
You will need a chisel, hammer, measuring tape, square, and possibly a router for more precise cuts.
5: Can I mortise a hinge without special tools?
Yes, you can use basic tools like a chisel and hammer, but a router can make the process easier and more accurate.
6: How deep should I mortise a door hinge?
Typically, mortises should be as deep as the hinge leaf thickness, usually around 1/8 inch to 1/4 inch.
7: What is the best hinge placement for mortising?
The best hinge placement is usually 7 inches from the top and 11 inches from the bottom of the door, with an additional hinge placed in between for stability.
Conclusion
Both the Brand Name Door Hinge Jig Router Template and the Dochard Door Hinge Installation Jig exemplify excellence in precision and user-friendly design. The former offers unparalleled accuracy, ensuring a flawless fit for hinges, while the latter enhances efficiency with its innovative features, making installation a seamless process.
Ultimately, these products stand out in their category, catering to both novice and seasoned carpenters. Their commitment to quality and functionality makes them indispensable tools for achieving professional results in door hinge mortising.
